Use LastPass as a SAML identity provider

If you use LastPass to centralize authentication and authorization in your business, you can integrate Kinde as a service provider for these processes. This gives you the benefits of Kinde’s robust auth capabilities, while keeping the familiar LastPass structure.

Before you begin

Link to this section

Here’s what you need to do before you add the connection:

  • Sign up for a LastPass business account to add a LastPass application.
  • Generate a SAML Metadata XML file as LastPass does not support hosting this for you (more information below).

Recommendations

Link to this section
  • Open the Kinde Enterprise connection in one browser tab, and the LastPass app configuration in another tab, as you will need to copy connection information across between them.
  • Set up and testing the connection in a non-production environment before making available to users.

Advanced configurations

Link to this section

Depending on your SAML set up, you may need to include advanced configurations for your connection. See Advanced SAML configurations

Step 1: Add the connection in Kinde

Link to this section

Add a connection for a specific organization

Link to this section
  1. Go to Organizations and open the organization.
  2. In the menu, select Authentication, then select Add connection.
  3. In the Add connection window, select New enterprise connection, then click Next.

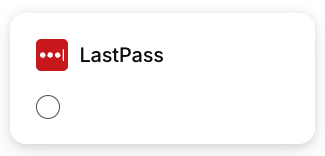

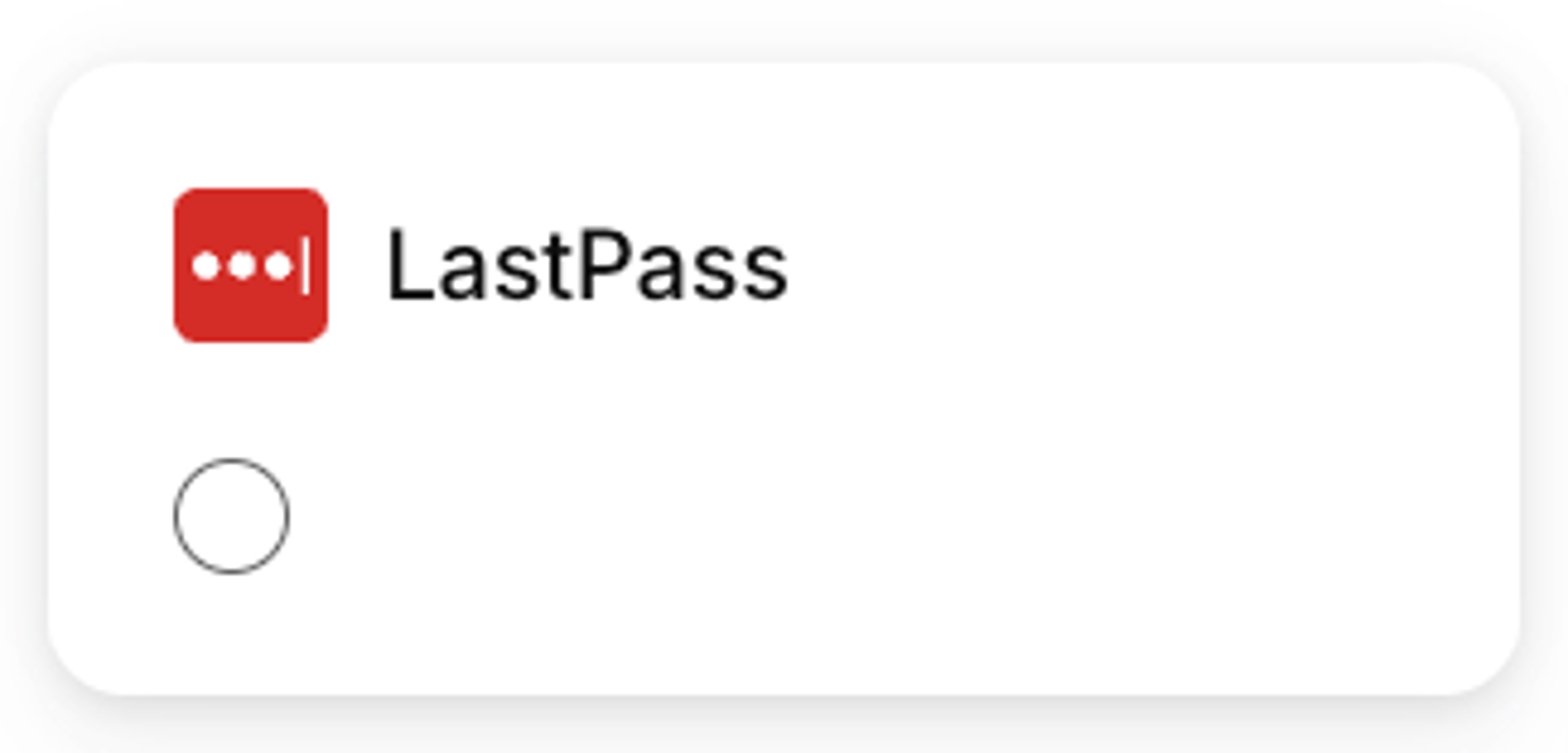

  4. Select the LastPass connection and then select Next.
  5. Next: ‘Step 2: Configure the connection’.

Add a connection that can be shared across multiple organizations

Link to this section
  1. Go to Settings > Environment > Authentication.
  2. Scroll to the Enterprise connection section and select Add connection. The Add connection window opens.
  3. Select the LastPass connection and then select Next.
  4. Next: ‘Step 2: Configure the connection’.

Step 2: Configure the connection

Link to this section
  1. Enter a name for the connection. It should match the connection name in LastPass.

  2. Enter a random string value for Entity ID, for e.g. 870sa9fbasfasdas23aghkhc12zasfnasd.

  3. Enter the IdP metadata URL. This URL comes from your identity provider.

    optional fields for saml

  4. Enter a sign in URL if your IdP requires a specific URL.

  5. If you want, select the Sign request algorithm and Protocol binding. The options you choose will depend on what your identity provider prefers or requires.

  6. Select Email as the Name ID format. This helps identify and link user identities between your IdP and Kinde.

  7. Enter emailAddress as the Email key attribute. This is the attribute in the SAML token that contains the user’s email. Setting this value ensures that the email address returned in the SAML response is correctly retrieved.

  8. (Optional) Add a first name and last name key attribute. This is not necessary for LastPass.

    Home realm domains in SAML configuration

  9. Enter any relevant Home realm domains. This is how SAML recognizes a user’s credentials and routes them to the correct sign in page. Note that home realm domains need to be unique across all connections in an environment. Read more about home realm domains.

  10. If you use home realm domains, the sign in button is hidden on the auth screen by default. To show the SSO button, select the Always show sign-in button option.

    ACS URL and custom domain option

  11. Copy the relevant reply URL:

    1. If you don’t use a custom domain, copy the ACS URL.
    2. If you do use a custom domain, select the Use custom domain instead option and copy the custom domain URL. Later, add this URL to the LastPass configuration.
  12. If you want to enable just-in-time (JIT) provisioning for users, select the Create a user record in Kinde option. This saves time adding users manually or via API later.

    Provisioning configuration for SAML

  13. (Temporary feature) Select if you want to treat this connection as a trusted provider. A trusted provider is one that guarantees the email they issue is verified.

  14. (Optional) In the Sign SAML request section, paste in the Signed certificate and Private key. You may have got these from your IdP or you may have generated yourself (see procedure above).

  15. Enter any upstream params that you want to pass to the identity provider. Not all providers support this, so check their documentation first.

  16. Select Save.

Step 3: Add and configure your LastPass application

Link to this section

View the LastPass docs for the full procedure.

  1. Sign in to your LastPass business account.

  2. In the menu, select AdminConsole.

  3. Go to Applications, then select SSO apps.

  4. Select Search the catalogue. A side panel slides out.

    Initialize SAML keys in LastPass

  5. Follow the prompt to initialize SAML keys. This will take up to 15 minutes to process.

  6. Refresh the page and select Search the catalogue again. The side panel slides out showing a list.

  7. Scroll and select Custom service.

  8. Select Add a new domain if prompted. The configuration panel opens.

    Add app name

  9. Enter a Name and select which groups will be able to sign in using this SSO connection.

  10. At the top of the Configuration section select Export SAML IdP Metadata.

  11. Select Copy or download, then select OK.

    Configure application in LastPass

  12. In the Service Provider entity ID field, enter the random ID you generated for the Entity ID in Kinde.

  13. In the Assertion consumer service field, enter the ACS URL or your custom domain, from Kinde.

  14. Make sure the Name ID format is emailAddress and the Name ID is `Email address’.

  15. Enter any custom attributes required.

    Custom attributes in LastPass

  16. Select View key under the Key field.

  17. Copy the key. You will need this to finishe setting up the Kinde connection.

  18. Make sure the Service is enabled option is selected.

  19. Select Save.

Step 4: Finish setting up your LastPass connection in Kinde

Link to this section
  1. Open the connection in Kinde. Go to Organization > Authentication or via Settings > Authentication.
  2. In the IdP metadata URL field paste the IDP Entity ID you copied from LastPass.
  3. In the Sign-in URL field paste the Single Sign-on URL you copied from LastPass.
  4. In the Signing certificate field paste the IDP Metadata XML file content. [@Viv not sure about this - is this where hosting the certificate is advised??]
  5. In the Private key field paste in the Key you copied from LastPass.
  6. Switch on the connection. This will make it instantly available to users if this is your production environment.
    1. For environment-level connections, scroll down and select the apps that will use the auth method.
    2. For organization-level connections, scroll down and select if you want to switch this on for the org. Note that it will be automatically available for all apps if you choose this option.
  7. Select Save.

Test the connection works by trying to sign in to your test environment using this method. Re-test when you deploy the option to users.
