Add a new MCP connection

MCP connections are currently in beta. Contact support to enable this feature for your account.

An MCP connection exposes your registered APIs as tools that AI agents—like Cursor, Claude, and VS Code—can call on behalf of your users. Kinde builds the tools from your OpenAPI spec, gives each connection a unique URL, and authenticates clients with a user API key. The scopes on that key control which tools the agent can use.

What you need

Link to this section

• A Kinde account with Admin permissions (Plus plan or higher — see pricing)
• MCP connections enabled for your environment (beta feature; contact support to enable for your business)
• A live upstream base URL that your API is reachable at

How it works

Link to this section

1. Upload an OpenAPI spec for your API. Kinde generates scopes and MCP tool metadata for each operation.
2. Create an MCP connection and authorize that API.
3. Configure how Kinde authenticates to your upstream API (for example, pass through the user’s API key, or send a static bearer token).
4. A user creates a user API key for the authorized API and selects the scopes (tools) they need.
5. An MCP client connects to https://<your_business>.kinde.com/mcp/<connection-id> with that key.
6. When the agent calls a tool, Kinde proxies the matching HTTP request to your API and records an audit entry.

Quickstart

Link to this section

1. Create an API with an OpenAPI spec

Link to this section

If you haven’t already, create an API with the following steps:

Adding scopes from an OpenAPI spec is only available on the Kinde Plus plan and higher. See pricing for more details.

1. Go to Settings > Environment > APIs.

2. Select Add API.

3. Enter an API name (e.g., “MCP Demo API”) and Audience. The audience (aud) is a unique identifier for this API. Often a short code or the URL of the API is used (e.g., https://yourbusiness.com/mcp).

4. Select Save. The details window for the API opens.

5. Select OpenAPI spec in the side menu.

6. Select Upload file.

7. Choose your JSON or YAML file from your computer (maximum file size: 20MB).

   Kinde uploads the file and parses it to generate scopes.

   Ensure the spec includes a server URL under servers (first entry). That URL becomes the base URL for upstream tool calls. See the sample OpenAPI spec file.

See also Register and manage APIs.

2. Create an MCP connection

Link to this section

1. Go to your Kinde dashboard and select MCP Servers > Connections.
2. Select Add new connection.
3. Enter a Connection name (e.g., “MCP Demo Connection”).
4. Select the API from the dropdown.
5. Select Save.

You are redirected to the connection Details page.

3. Configure authentication and headers

Link to this section

Choose how Kinde authenticates to your upstream API:

1. Go to the Details page for the connection.

2. Scroll down to Backend authentication.

3. Select one of the following Authentication type options:

   • Pass through user token: Forwards the MCP client’s user API key as Authorization: Bearer <key> to your API.
   • Static bearer token: Sends a configured token as Authorization: Bearer <token>.
   • API key (X-Api-Key header): Sends a configured key as X-Api-Key: <key>.
   • Static headers only: Adds no authentication header. Use extra headers for any custom auth your API needs.
   • Coming Soon - OAuth 2.0 client credentials: Shown in the UI but not available yet. Choose another type.

4. Scroll down to Extra HTTP headers and add any you need for your API.

   These headers are applied on every upstream request after the primary auth headers. Header values support templates that Kinde replaces per request:

   • {{kinde.user.id}}
   • {{kinde.user.username}}
   • {{kinde.user.email}}
   • {{kinde.user.firstname}}
   • {{kinde.user.lastname}}

5. Select Save.

4. Get a user API key

Link to this section

MCP clients authenticate with a user’s API key for the authorized API. You can create one from the dashboard on behalf of the user, or they can create it themselves if you have enabled this in the self-serve portal.

To create an API key for a user:

1. Go to your Kinde dashboard and select Users.

2. Select the user you want to create an API key for (such as yourself).

3. Go to the API keys page.

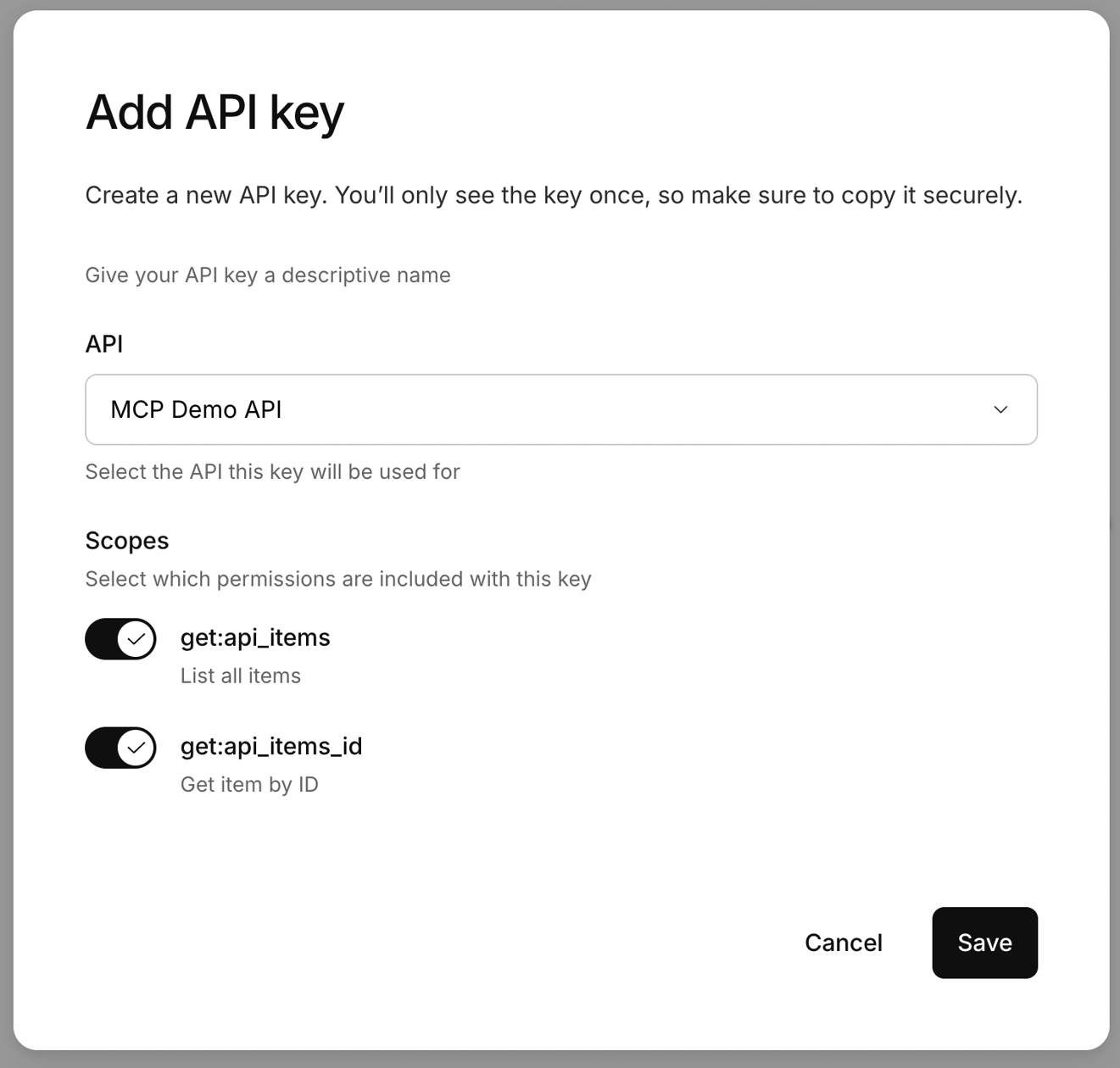

4. Select Add API key. A modal opens.



5. Enter a key Name, select the API (e.g., “MCP Demo API”), select the scopes you want to grant, and select Save.

6. Copy the key and store it securely. You will only see it once.

   Kinde API key format

   k_live_1234567890abcdefghijklmnopqrstuvwxyz

You will need this API key when configuring your MCP client.

See User-level API keys and Scopes for API keys.

Connect to an MCP client

Link to this section

1. Go to your Kinde dashboard > MCP Servers > Connections and select the connection.
2. Go to the Quick start page.
3. Copy the connection config JSON for your preferred MCP client:
   • Remote MCP (HTTP) (e.g., Cursor and VS Code–based tools)
   • Stdio bridge (command-based clients) (e.g., Claude desktop)
4. Replace the KINDE_USER_API_KEY with the user API key you created in the previous section.

See the following sections for client-specific setup steps.

Claude desktop

Link to this section

1. Open the Claude desktop app.

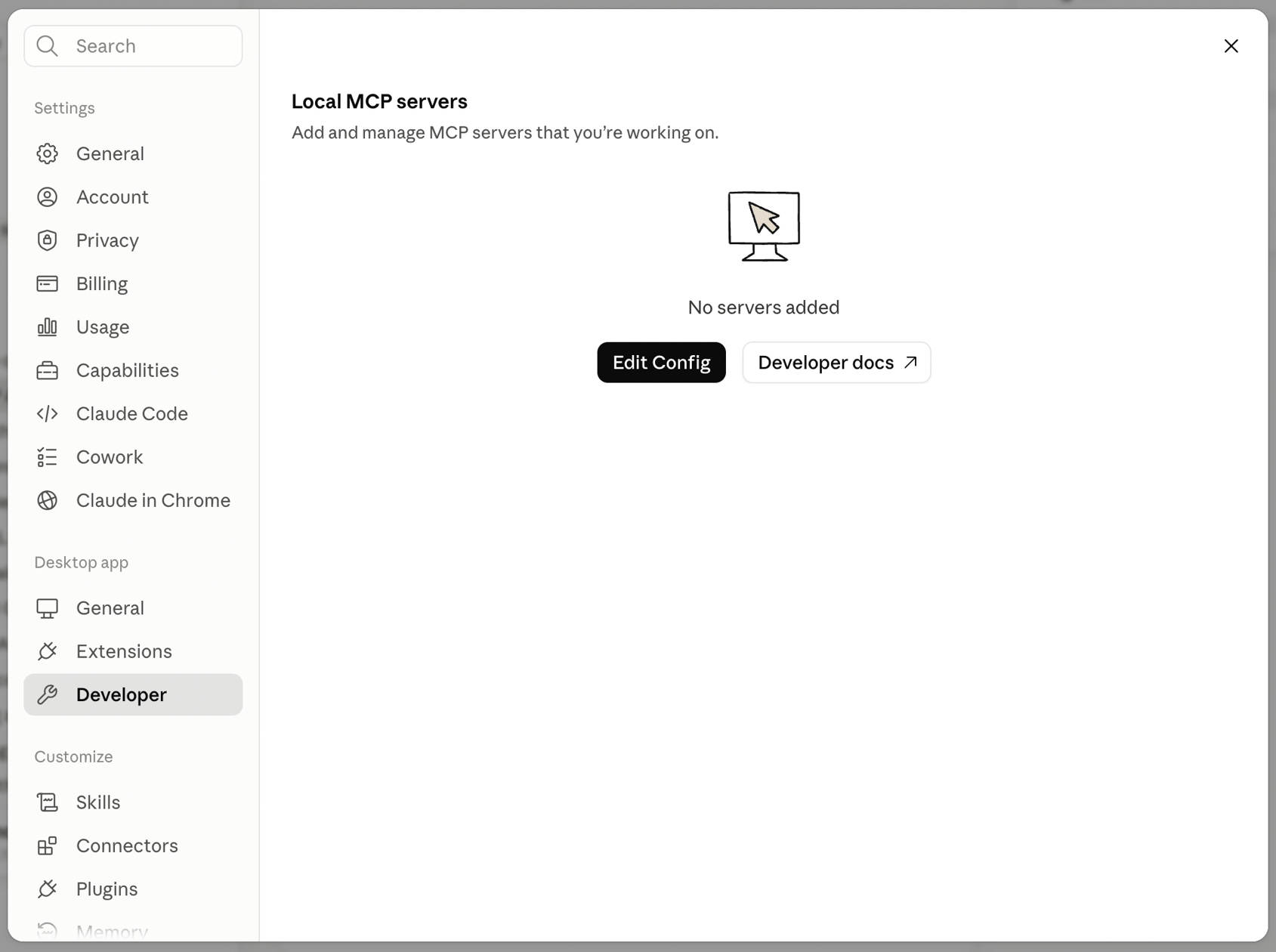

2. Go to Settings > Developer > select Edit Config. The claude_desktop_config.json file opens in your file browser.



3. Open the file in your preferred text editor.

4. Paste the Stdio bridge connection config JSON and save the file.

   You can find this under the Quick start > Stdio bridge (command-based clients) section of your MCP connection in Kinde. Replace KINDE_USER_API_KEY with the user API key you created in the previous section.

5. Restart Claude.

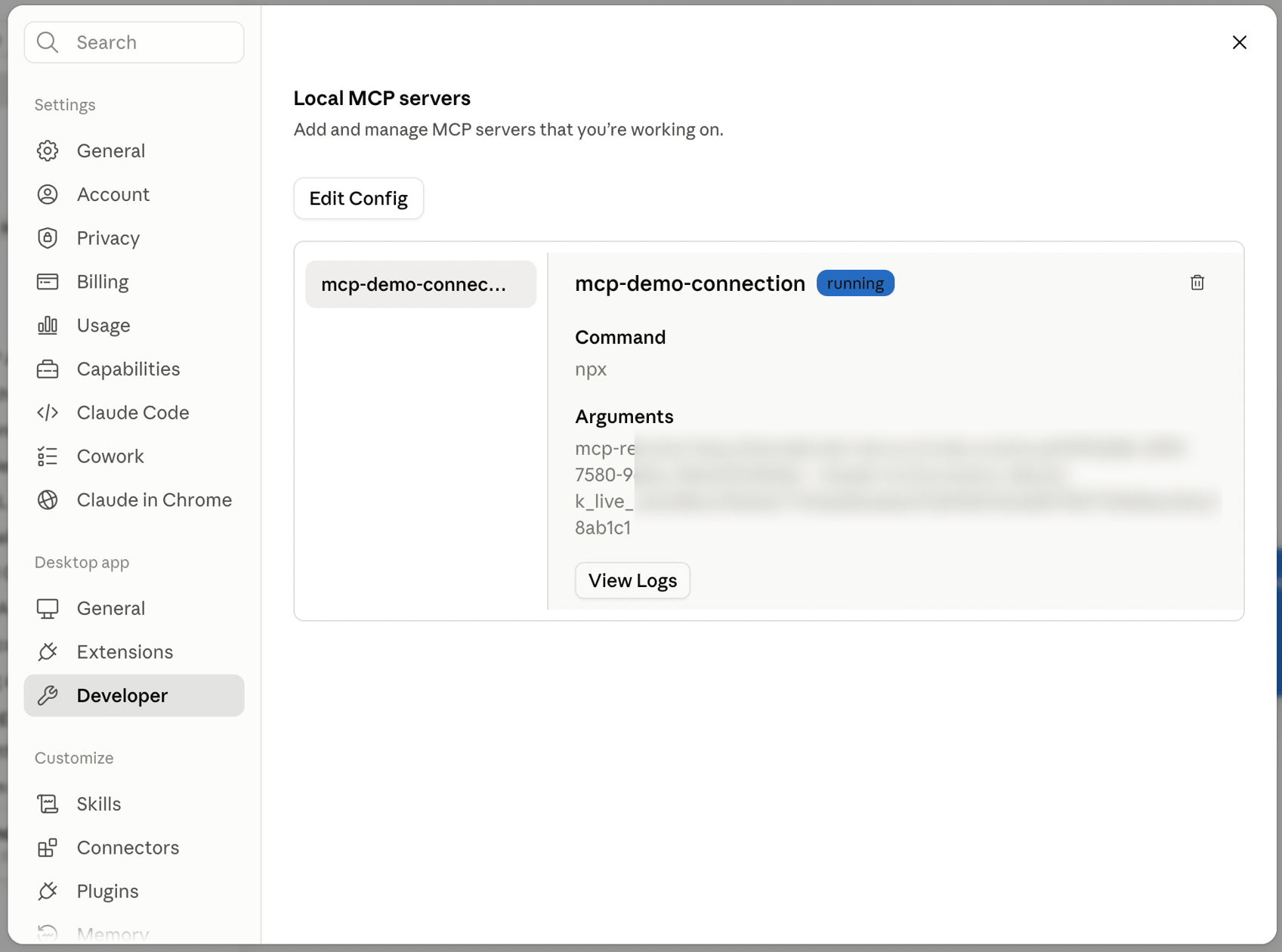

6. Confirm the Kinde MCP server appears on the page.

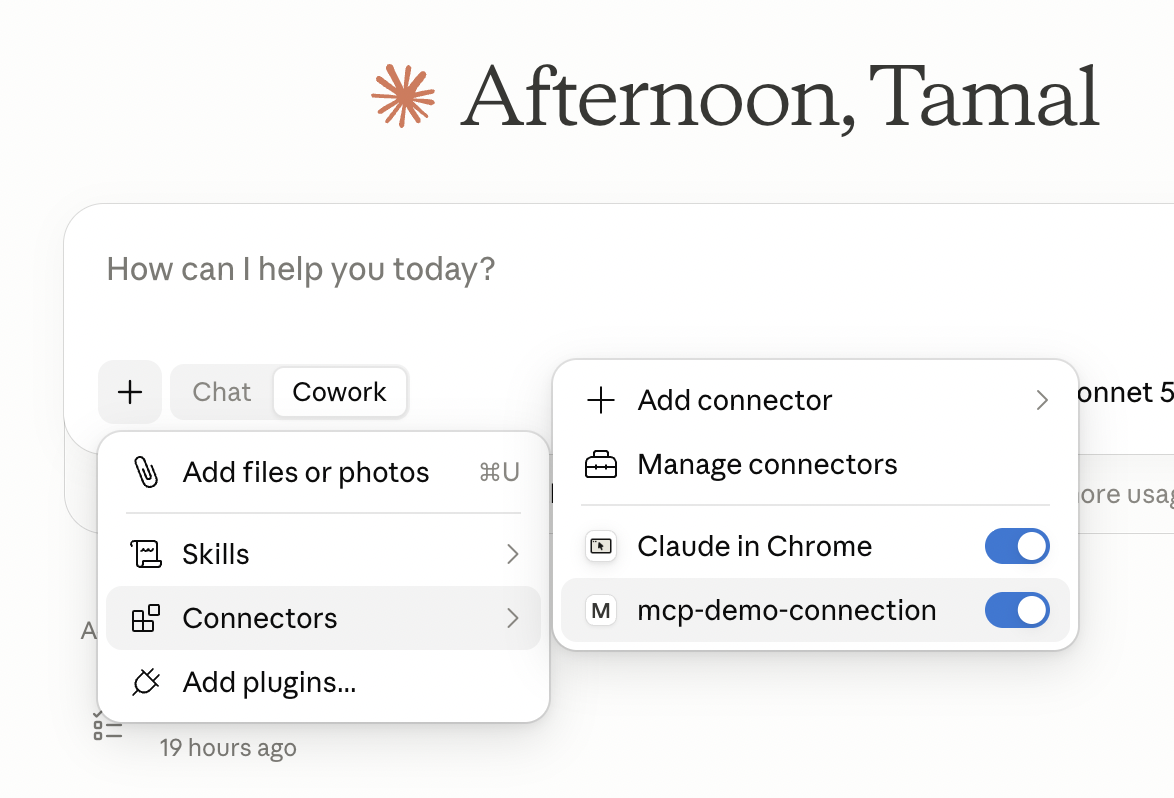

7. Open your chat window. The connection appears under the connectors list.

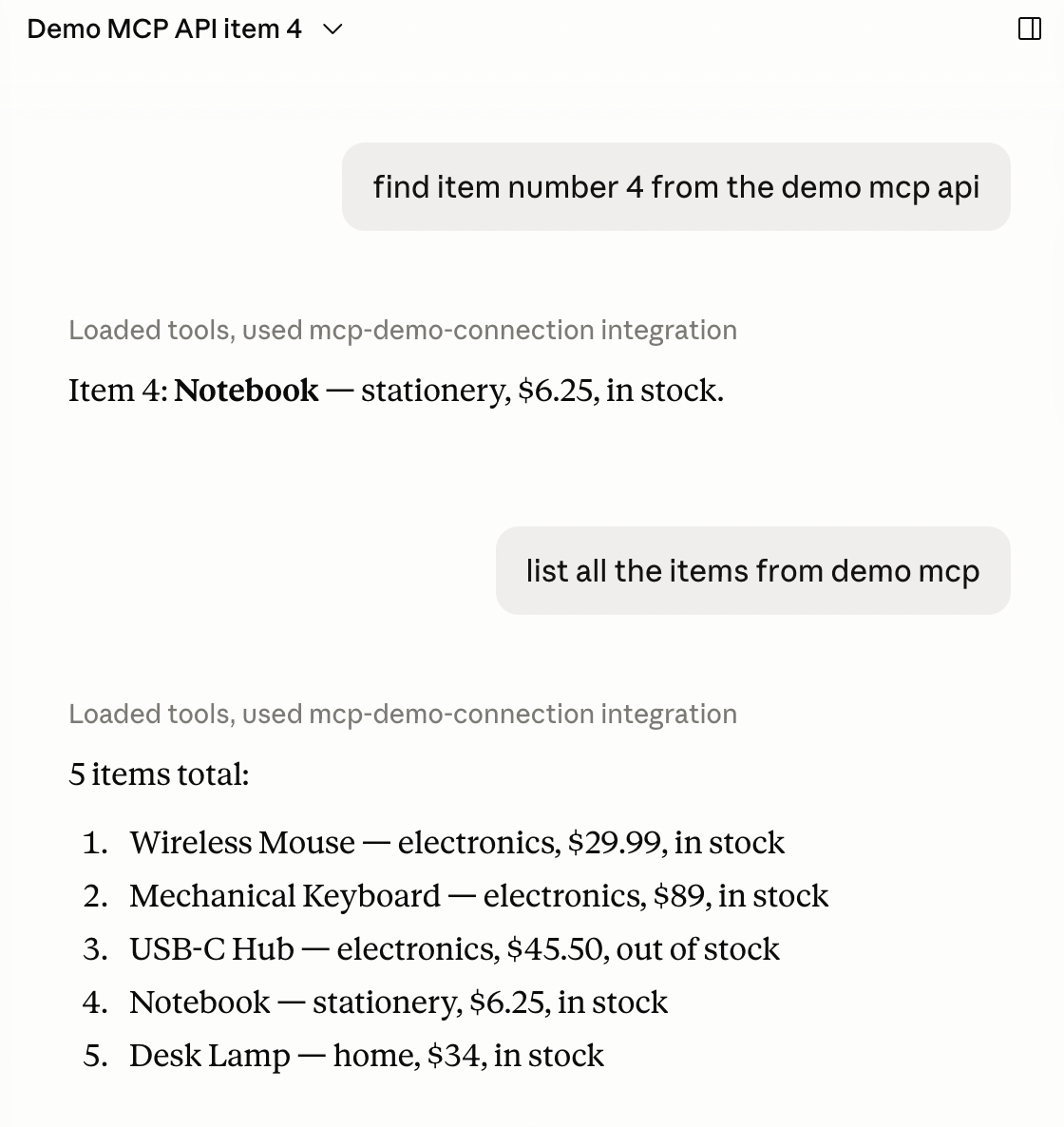

8. Run a sample tool call to test the connection.



Cursor

Link to this section

1. Open the Cursor desktop app.

2. Go to Cursor > Settings > Cursor Settings.

3. Go to Tools & MCP.

4. Select Add custom MCP, or if you already have other MCP servers, select New MCP server. The mcp.json file opens.



5. Paste the Remote MCP connection config JSON and save the file.

   You can find this under the Quick start > Remote MCP (HTTP) section of your MCP connection in Kinde. Replace KINDE_USER_API_KEY with the user API key you created in the previous section.

6. Restart Cursor.

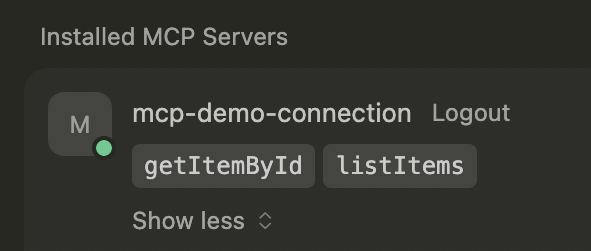

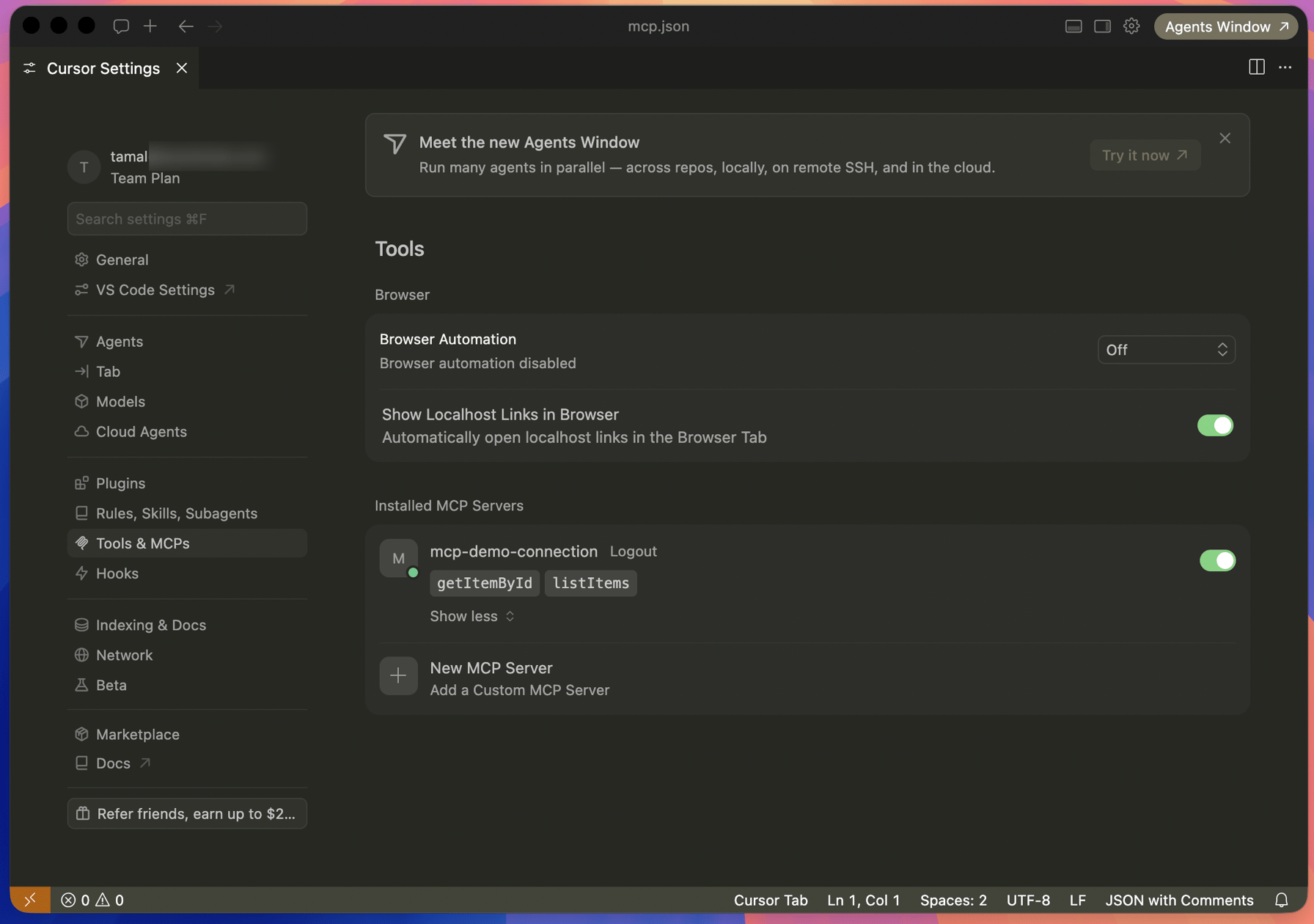

7. Confirm your connection appears in the list of Installed MCP Servers.

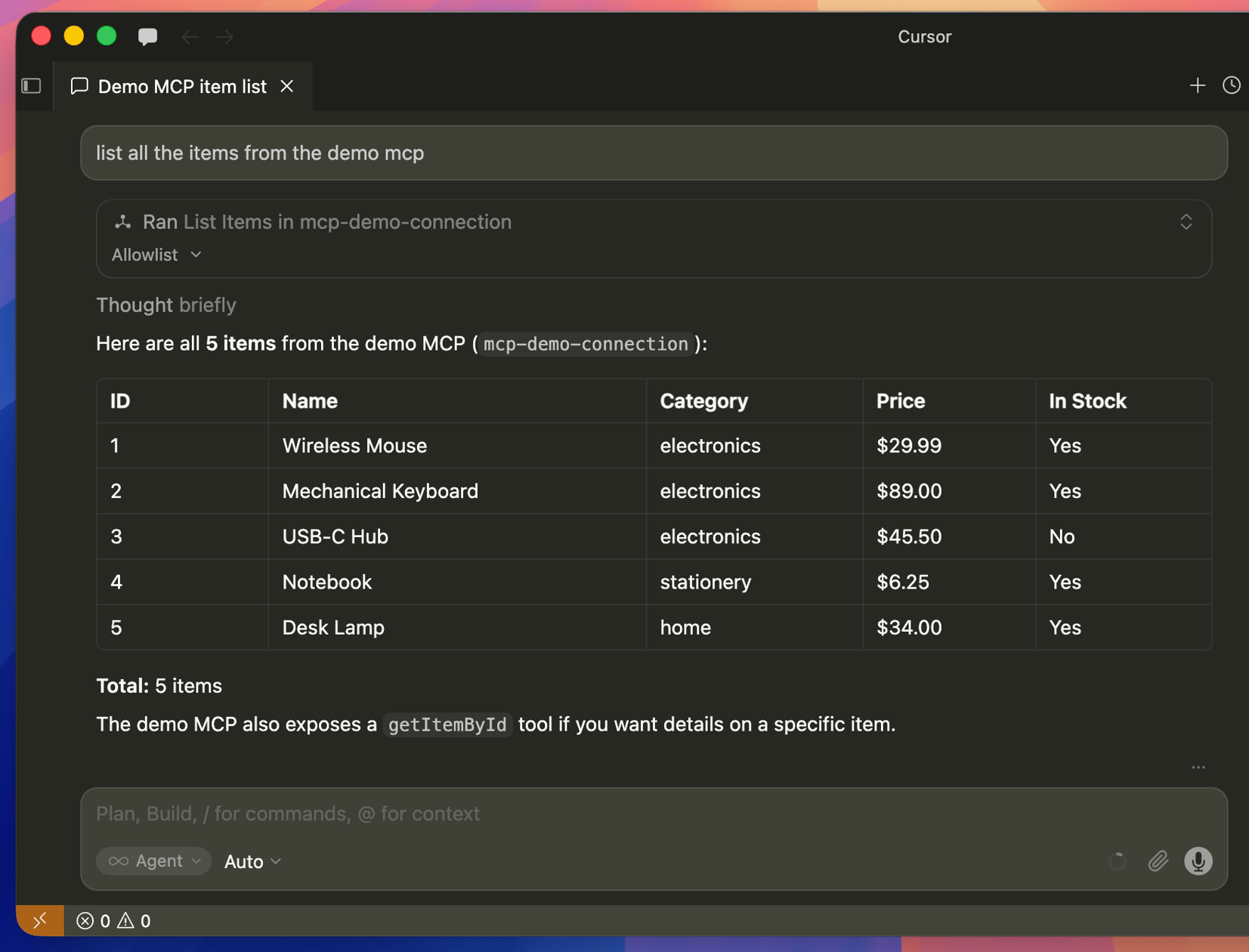

8. Open your chat window and run a sample tool call to test the connection.



Manage connections

Link to this section

Re-authorize an API

Link to this section

If you have more than one API, you can change or re-authorize it:

1. Go to your Kinde dashboard > MCP Servers > Connections and select View details for the connection you want to change.
2. Go to the APIs page.
3. Select the three dots next to the API and select Re-authorize connection or Authorize connection.

Changing the authorized API updates which tools are available on this connection. The connection URL stays the same. Only one API can be authorized at a time.

Review tools

Link to this section

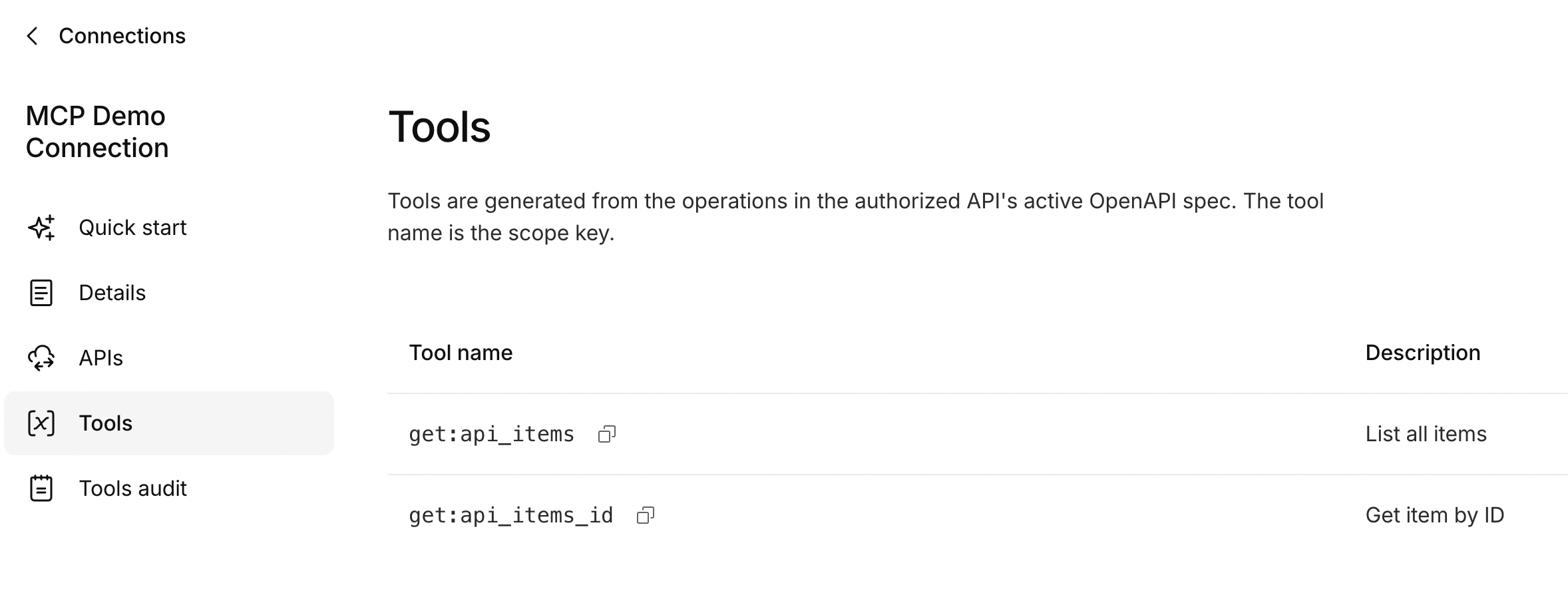

Open the connection and select the Tools page.

Tools are generated from the operations in the authorized API’s active OpenAPI spec.

• Each tool maps to one OpenAPI operation.
• Tool names prefer a sanitized operationId when present; otherwise Kinde derives a name from the API name, HTTP method, and path. Duplicate names are disambiguated automatically.
• An MCP client only sees tools whose corresponding API scopes are assigned to the user’s API key.

Monitor tool calls

Link to this section

Open the connection and select the Tools audit page.

You will see every tool call made through this connection, including the agent, user, outcome, and upstream status.

Column	Meaning
User	Email or user ID associated with the API key
Tool	MCP tool name
Outcome	OK or Error
Upstream	HTTP status returned by your API (when available)
Duration	Time spent calling upstream
When	Timestamp

You can search by tool or user, and filter outcome to All, OK, or Error. Select View details for method, path, error summary, agent ID, IP address, user agent, MCP protocol version, and session ID.

Delete a connection

Link to this section

Deleting a connection is permanent

The connection URL will stop working immediately and cannot be restored.

1. Go to your Kinde dashboard > MCP Servers > Connections and select the three dots on the connection tile you want to delete.
2. Select Delete connection.
3. Confirm.

Sample OpenAPI spec file

Link to this section

sample-openapi.yaml

openapi: 3.0.3
info:
  title: MCP Demo API
  description: Sample catalog API for testing Kinde MCP connections.
  version: 1.0.0
servers:
  - url: https://mcp-demo-api.vercel.app
paths:
  /api/items:
    get:
      operationId: listItems
      summary: List all items
      description: Returns the full sample catalog of items.
      responses:
        "200":
          description: A list of items
          content:
            application/json:
              schema:
                type: object
                properties:
                  items:
                    type: array
                    items:
                      $ref: "#/components/schemas/Item"
                  total:
                    type: integer
  /api/items/{id}:
    get:
      operationId: getItemById
      summary: Get item by ID
      description: Returns a single item from the sample catalog.
      parameters:
        - name: id
          in: path
          required: true
          description: Item ID (1–5 in the sample data)
          schema:
            type: string
            example: "1"
      responses:
        "200":
          description: The requested item
          content:
            application/json:
              schema:
                type: object
                properties:
                  item:
                    $ref: "#/components/schemas/Item"
        "404":
          description: Item not found
          content:
            application/json:
              schema:
                type: object
                properties:
                  error:
                    type: string
                  id:
                    type: string
components:
  schemas:
    Item:
      type: object
      required:
        - id
        - name
        - category
        - price
        - inStock
      properties:
        id:
          type: string
        name:
          type: string
        category:
          type: string
        price:
          type: number
        inStock:
          type: boolean

Permissions

Link to this section

Action	Permission
View connections, tools, audit	read:apis
Create, delete, authorize APIs, configure backend auth	update:apis
